Architecture
System Architecture

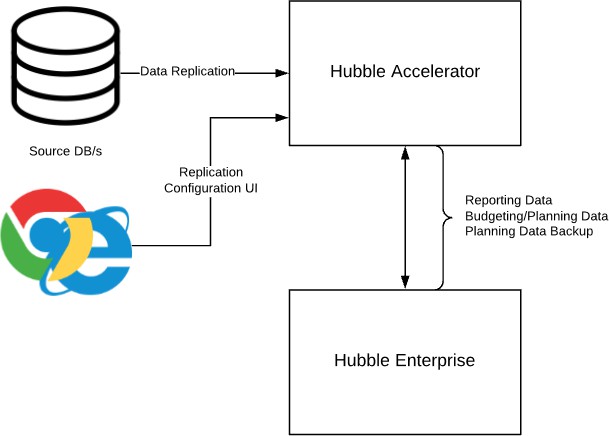

Below is a diagram with the standard System Architecture of a Hubble Enterprise Deployment.

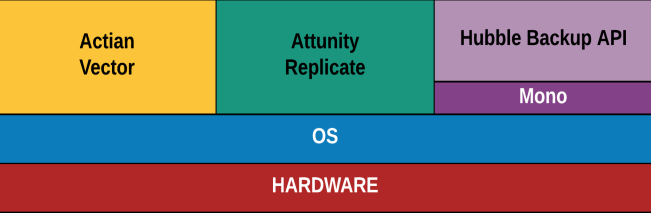

Components
Hubble accelerator installs:
- Actian Vector
- Attunity Replicate
- Hubble Backup API
Network Access
Below are defined all the ports a firewall needs to be configured with to ensure normal function of Hubble Accelerator as part of a Hubble deployment.
Port |
Protocol |
Service |
Software |
Sources |
|---|---|---|---|---|
3552 |
TCP |
Replication Admin UI |
Attunity Replicate |
Replication Admin PC |
27832 |
TCP |
Net server IIGCC (Communication) |
Actian Vector |
Hubble desktop users on company network, web server |
27839 |
TCP |
Data Access Server |
Actian Vector |
Hubble desktop users on company network, web server |
3550 |
TCP |
Replication |
Attunity Replicate |
Qlik front end running on the accelerator |
5000 |
TCP |
Hubble Backup API |
hubble-applianceapi |
Admin tool backup budgeting data |
50001 |
TCP |
Hubble Alert Services |
hubble-alerts |
Application server, Web Servers |
